12” Mach 122
The Mach 122 accepts A100-15 (SD12) shank bits and works over a wide pressure range with an optimum performance reached at air pressures of 200 psi (14 bar) and above as its higher air consumption provides increased uphole velocity, particularly when using oversized diameter drill bits.
Mach 122 has a one piece top-adaptor with N.R.V. (Non-Return- Valve) fitted for easy inspection and service, with integral finger to reduce maintenance and eliminate shimming which increases service intervals. Mach 122 has no liner which increases the 140 kg piston blow energy and reduces parts required. This hammer is suitable for use with overburden systems.
| Air Consumption | ||||
 |
||||
| AT A GLANCE | ||
|---|---|---|
 |
 |
 |
SIZE |
SHANK |
AIR PRESSURE |
300mm - 445mm 11 7/8" - 17 1/2" |
SD12 |
100 - 435 psi (97 - 30 bar) |
| Hammer Overview | ||||
|---|---|---|---|---|
| Hammer Model | Mach 122 | |||
| Part Number | 600110 | |||
| Shank | SD12 | |||
| Thread Connection | 6 5/8" API Reg Pin | |||
| Minimum Bit Diameter | 300mm | |||
| Hammer Flat Size | C Ring type | |||
| Weight | 614 Kg (1,353 lbs) | |||
| Outside Diameter | 273mm (10.75") | |||
| Length (shoulder to shoulder) | 1667mm (65.6") | |||
| Minimum Weight On Bit | 1600 Kg (3520 lbs) | |||
| Maximum Weight On Bit | 3500 Kg (7700 lbs)||||

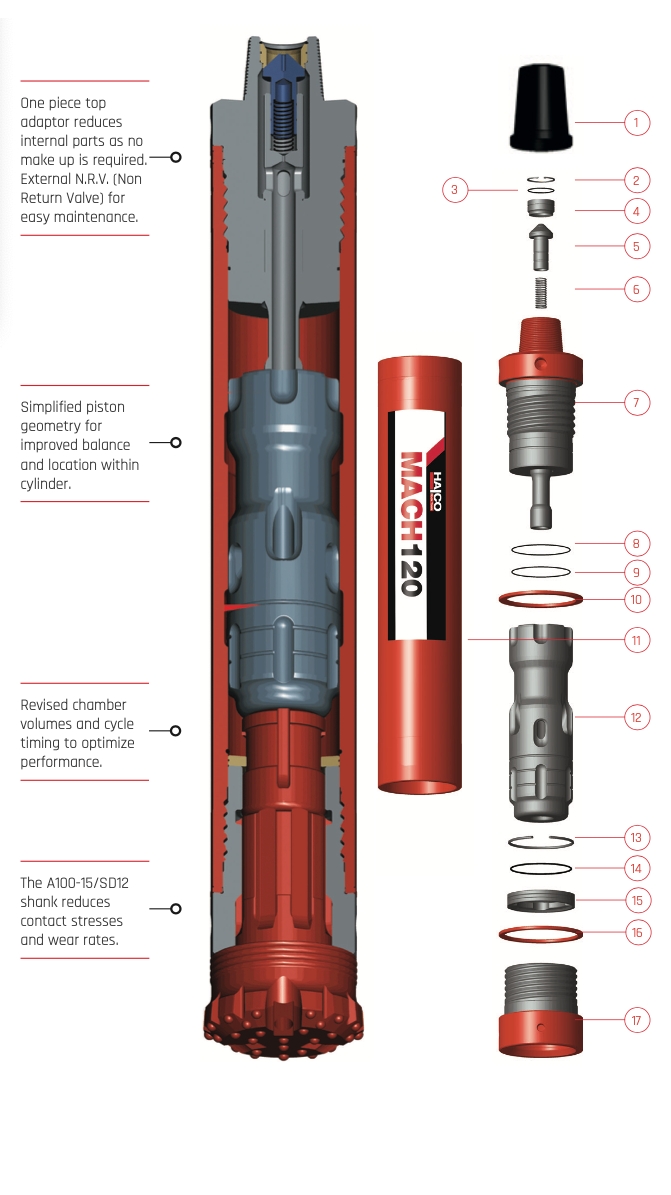

| Parts List | |||||
|---|---|---|---|---|---|
| Type | Mach 122 | Maintenance Kits | |||
| Shank | SD12 | Service Kit | Repair Kit | ||
| Item | Description | Part No. | SK12 | RK19 | |
| 1 | Thread Protector | 200112 | No | No | |
| 2 | Circlip | 777001 | Yes | Yes | |
| 3 | O-Ring | 768133 | Yes | Yes | |
| 4 | N.R.V Seat | 602286 | No | Yes | |
| 5 | Non Return Valve | 602288 | No | Yes | |
| 6 | N.R.V Spring | 760055 | Yes | Yes | |
| 7 | Top Adaptor | 602639 | No | No | |
| 8 & 9 | O-Ring (2) | 768137 | Yes | Yes | |
| 10 | Spacer | 602366 | No | No | |
| 11 | Cylinder | 602013 | No | No | |
| 12 | Piston | 602047 | No | No | |
| 13 | Snap Ring | 783021 | Yes | Yes | |
| 14 | O-Ring | 768105 | Yes | Yes | |
| 15 | Bit Retaining Ring | 602102 | No | Yes | |
| 16 | Chuck Spacer | 602366 | Yes | Yes | |
| 17 | Chuck | 602052 | No | Yes | |
| Foot Valve | 601811 | No | Yes | ||
