12” Mach 132

The Mach 132 hammer accepts IR DHD112 shank bits. This hammer, although capable of high pressure drilling is particularly suitable at pressures between 100 – 200 psi (7 – 14 bar).

The Mach 132 has a pin drive system to prevent metal to metal contact thereby minimizing spline wear and damage which can result in drill bit shank failure. Mach 132 has a one piece top-adaptor with N.R.V. (Non-Return-Valve) fitted for easy inspection and service, with integral finger to reduce maintenance and eliminate shimming which increases service intervals. Servicing requires only a few simple tools. Mach 132 has no liner which increases the 140 kg piston blow energy and reduces parts required. This hammer is suitable for use with overburden systems.


Air Consumption
AT A GLANCE
SIZE
SHANK
AIR PRESSURE
381mm - 489mm
15 - 29 1/4"
DHD112 Pin Drive
100 - 435 psi
(7 - 30 bar)
3500 Kg (7700 lbs)
Hammer Overview
Hammer Model Mach 132
Part Number 600142
Shank DHD112 Pin Drive
Thread Connection 6 5/8" API Reg Pin
Minimum Bit Diameter300mm
Hammer Flat SizeC Ring type
Weight 615 Kg (1,356 lbs)
Outside Diameter 273mm (10.75")
Length (shoulder to shoulder) 1684mm (66.3")
Minimum Weight On Bit1600 Kg (3520 lbs)
Maximum Weight On Bit

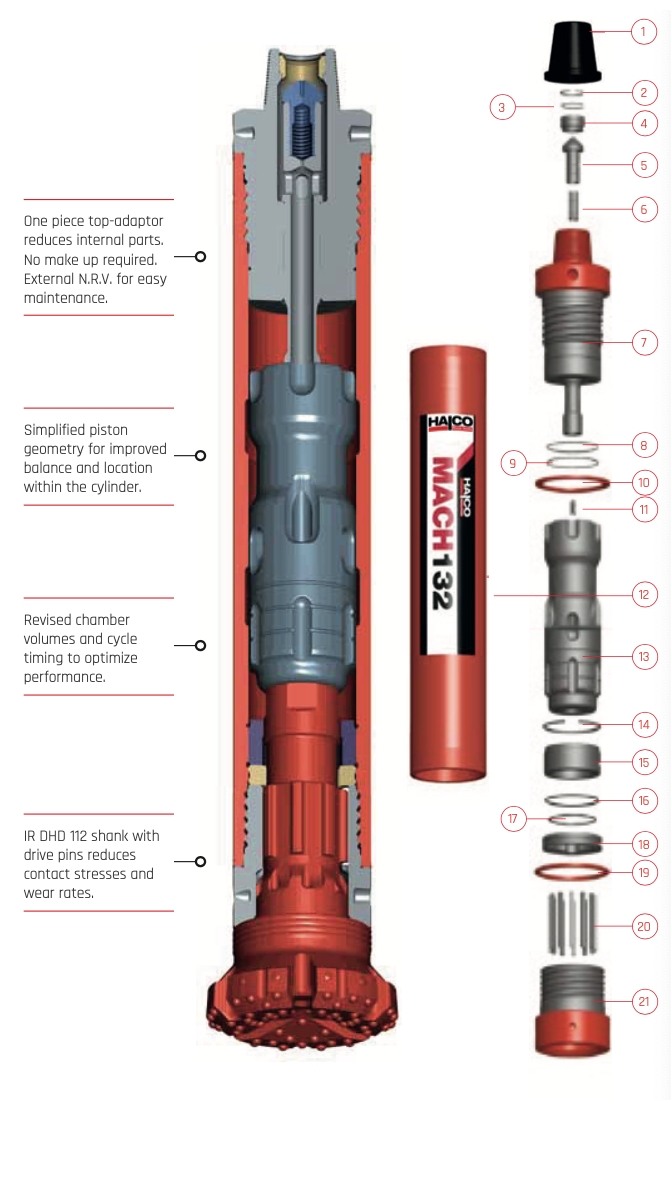

Parts List
Type Mach 132 Maintenance Kits
Shank DHD112 Pin Drive Service Kit Repair Kit
Item Description Part No. SK14 RK23
1Thread Protector200112NoNo
2Circlip777001YesYes
3O-Ring768133YesYes
4N.R.V Seat602286NoYes
5Non Return Valve602288NoYes
6N.R.V Spring760055YesYes
7Top Adaptor602639NoNo
8 & 9O-Ring (2)768137YesYes
10Bleed Plug - Blank602499NoNo
Bleed Plug - 3mm602500NoNo
Bleed Plug - 4mm602501NoNo
Bleed Plug - 5mm602502NoNo
Bleed Plug - 6mm602503NoNo
Bleed Plug - 8mm602874NoNo
11Spacer602366NoYes
12Cylinder602563NoNo
13Piston604503NoNo
14Snap Ring783021YesYes
15Bit Guide Bush602531NoYes
16O-Ring768184YesYes
17Viton Band Containment603819YesYes
18Bit Retaining Ring602530NoYes
19Chuck Spacer602366YesNo
20Drive Pin Set (8)600564YesYes
21Chuck602528NoYes
Foot Valve602522NoYes
