8” Dominator 800 – QL80

The Dominator 800 is a general purpose hammer suitable for a wide range of air pressures.

A low to mid range air volume hammer with a one piece top adaptor. The Dominator 800 has a unique air distributor finger which is integral with the top adaptor and reduces requirements for shimming.


Air Consumption
AT A GLANCE
SIZE
SHANK
AIR PRESSURE
200mm - 311mm
7 7/8 - 12 1/4"
QL80
100 - 500 psi
(7 - 35 bar)
2000 Kg (4400 lbs)
Hammer Overview
Hammer Model DOM800
Part Number 600374
Shank QL80
Thread Connection 4 1/2" API Reg Pin
Minimum Bit Diameter200mm
Hammer Flat Size156mm (6.14")
Weight 180 Kg (396.8 lbs)
Outside Diameter 182mm (7.165")
Length (shoulder to shoulder) 1180mm (46.4")
Minimum Weight On Bit800 Kg (1760 lbs)
Maximum Weight On Bit

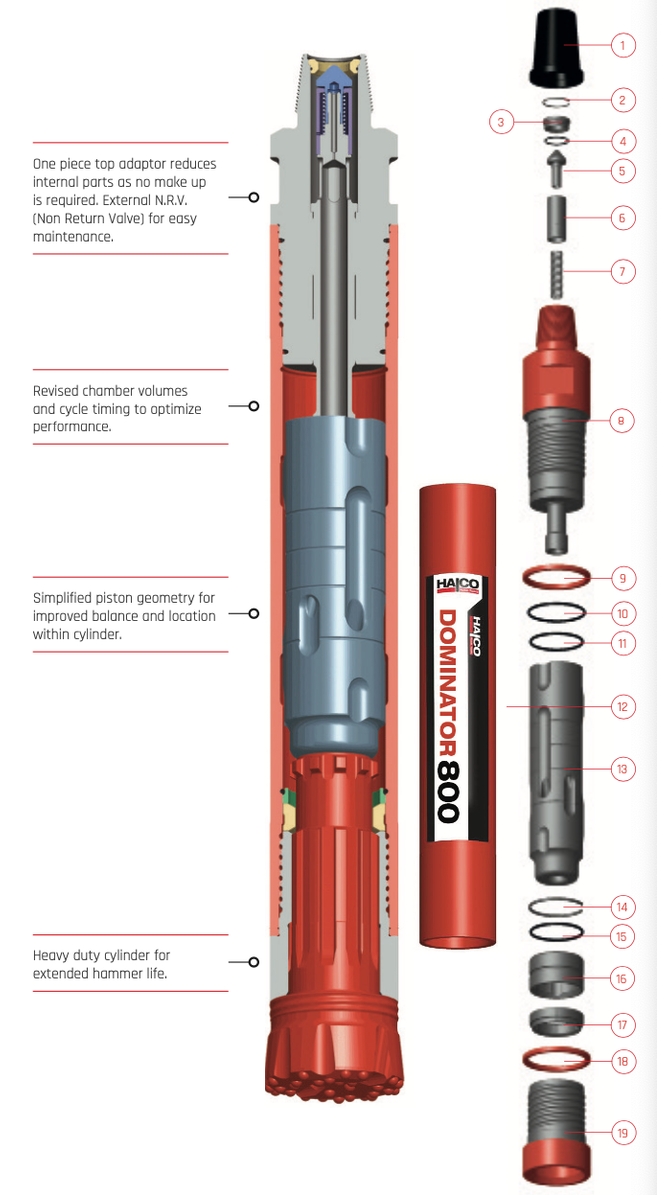

Parts List
Type DOM800 Maintenance Kits
Shank QL80 Service Kit Repair Kit
Item Description Part No. SK78 RK131
1Thread Protector207295NoNo
2Snap Ring783034YesYes
3N.R.V Seat602887NoYes
4O-Ring768150YesYes
5Non Return Valve602285NoYes
6Spring Cover603696NoYes
7N.R.V Spring760108YesYes
8Top Adaptor603607NoNo
9Spacer603576NoNo
10O-Ring768103YesYes
11O-Ring768145YesYes
12Cylinder604344NoNo
13Piston604343NoNo
14Snap Ring783015YesYes
15O-Ring768151YesYes
16Guide Bush604346NoYes
17Bit Retaining Ring604347NoYes
18Chuck Spacer603576YesYes
19Chuck604345NoYes
18aFoot Valve603334NoYes
