5″ Super Dominator 550HD DHD350

Super Dominator 550HD is a class leader in performance and is suitable for drilling at a wide range of air pressures but excels at high working pressures.

Combining the raw power of the Super Dominator 500 with extended life for abrasive conditions, the Super Dominator 550HD has a larger outside diameter, a one piece top adaptor with N.R.V (Non Return Valve) fitted for easy inspection and an integral finger to reduce maintenance and eliminating shimming.

The Super Dominator 500HD has no liner which increases the piston blow energy and reduces parts required.


Air Consumption
AT A GLANCE
SIZE
SHANK
AIR PRESSURE
140mm - 165mm
5 1/2 - 6 1/2"
DHD350
100 - 507 psi
(7 - 35 bar)
900 Kg (1980 lbs)
Hammer Overview
Hammer Model SDOM550HD
Part Number 600293
Shank DHD350
Thread Connection 3 1/2" API Reg Pin Up
Minimum Bit Diameter140mm
Hammer Flat Size90mm (3.54")
Weight 67.0 Kg (147.4 lbs)
Outside Diameter 124.5mm (4.85")
Length (shoulder to shoulder) 975mm (38.4")
Minimum Weight On Bit400 Kg (900 lbs)
Maximum Weight On Bit

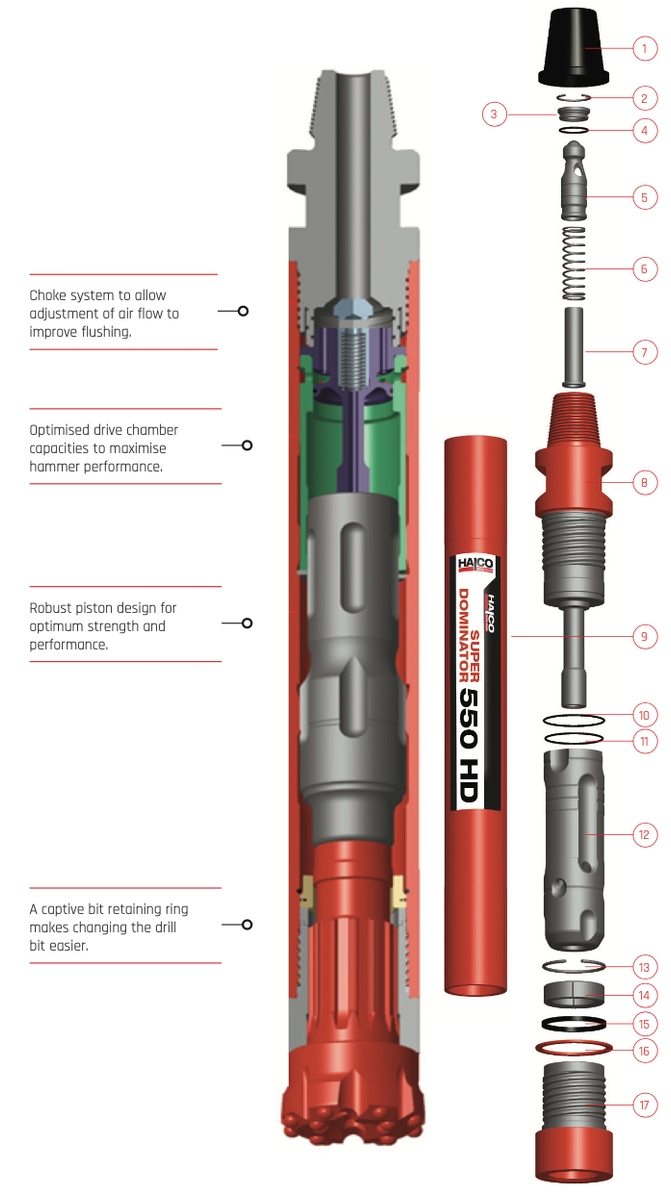

Parts List
Type SDOM550HD Maintenance Kits
Shank DHD350 Service Kit Repair Kit
Item Description Part No. SK72 RK123
1Thread Protector201701NoNo
2Snap Ring783028YesYes
3N.R.V Seat603510NoYes
4O-Ring786144YesYes
5Non Return Valve603554NoYes
6N.R.V Spring760135YesNo
7N.R.V Shield603652YesYes
8Top Adaptor603661NoNo
9Cylinder603370NoNo
10O-Ring768091YesYes
11O-Ring768043YesYes
12Piston603369NoNo
13Snap Ring783025YesNo
14Bit Retaining Ring602706NoYes
15Chuck Lock Ring603104YesYes
16Chuck Spacer602863YesYes
17Chuck602866NoYes
Foot Valve601902NoNo
