4” GP400 TL DHD340
| At a Glance | |||
|---|---|---|---|
|
Size
|
Shank
|
Air pressure
|

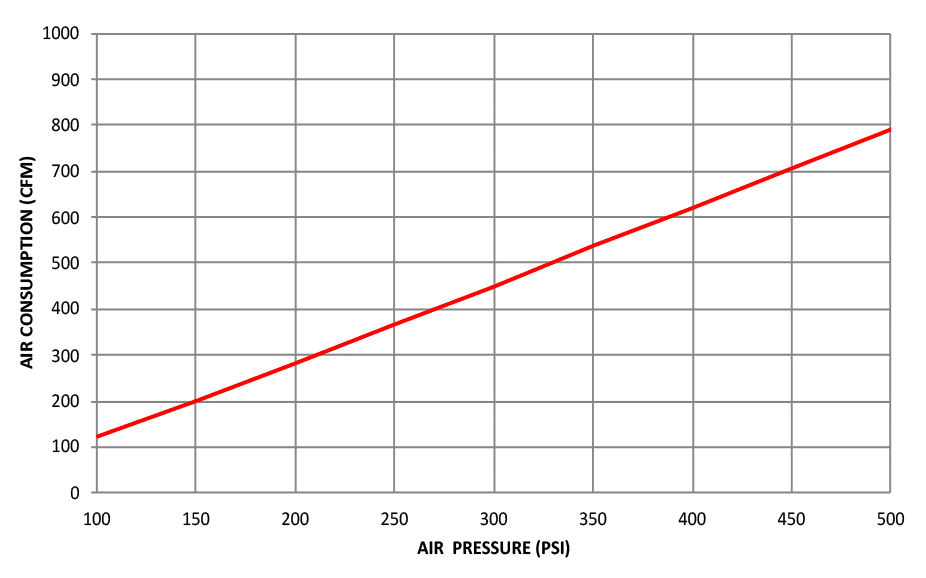

Air flow
|
|
|
DHD340
|
100 - 500 psi
|
125 - 800 cfm
|
| Hammer Overview | ||||
|---|---|---|---|---|
| Hammer Model | GP400 TL DHD340 | |||
| Part Number | 600499 | |||
| Shank | DHD340 | |||
| Thread Connection | API Reg Pin Up 2 3/8" | |||
| Weight | 46,1 kg (101.6 lbs) | |||
| Outside Diameter | 102 mm (4.02”) | |||
| Length (shoulder to shoulder) | 1021 mm (40.2”) | |||
| Parts List | Maintenance Kits | ||||
|---|---|---|---|---|---|
| Type | GP400 TL DHD340 | Service Kit | Repair Kit | ||
| Shank | DHD340 | ||||

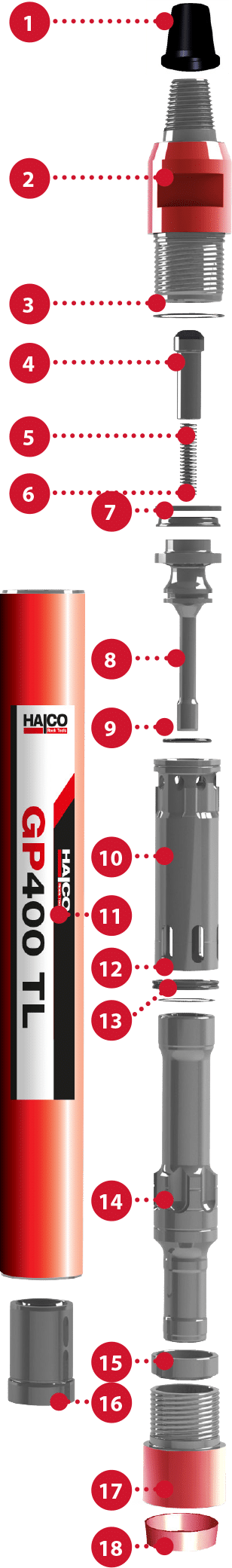

| Item | Description | Part No. | |||
| 1 | API 2 3/8" End cap | 06M-29-055 | No | No | |
| 2 | Backhead API 2 3/8" GP400TL | 08-004-054 | No | No | |
| 3 | 4" Backhead O-ring 82,22 x 2,62 | 06M-00-054 | No | No | |
| 4 | Check Valve | 08-004-055 | No | No | |
| 5 | Spring OD 21,5 x 100 | 06J-25-054 | No | No | |
| 6 | Make-up ring 4" GP400TL | 08-004-055 | No | No | |
| 7 | Lock ring 4" GP400TL | 08-004-055 | No | No | |
| 8 | Air feed tube 4" GP400TL | 08-004-0550 | No | No | |
| 9 | 4" Air feed tube O-ring 50,16 x 5,33 | 06M-00-0541 | No | No | |
| 10 | Inner cylinder 4" GP400TL | 2000405 | No | No | |
| 11 | Wear sleeve 4" GP400TL | 2000406 | No | No | |
| 12 | Bit Retaining Ring | 2001162 | No | No | |
| 13 | Seating ring 4" GP400TL | 08-004-0556 | No | No | |
| 14 | Piston | 2000077 | No | No | |
| 15 | 4" Seating ring O-Ring 66,4 x 1,78 | 06M-00-0543 | No | No | |
| 16 | Aligner 4” GP400TL DHD340 | 2001156 | No | No | |
| 17 | Chuck 4” GP400TL IR340 | 2001165 | No | No | |
| 18 | Tapered plug | 06M-29-0559 | No | No | |
